Description
All Scissor Lifts
-
3 Year (36 Months) Warranty!
-
CE Certified Lift Structure and Hydraulic System – Tested for 115% Dynamic Load Capacity and 150% Static Load Capacity
-

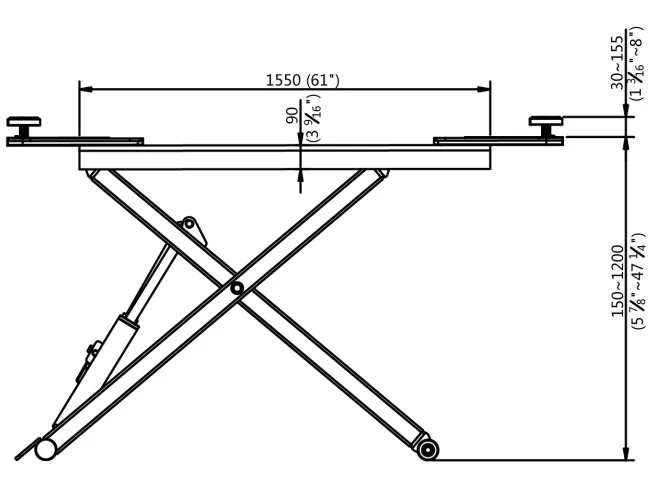

55″ Maximum Lifting Height with Adjustable Screw Pads
-

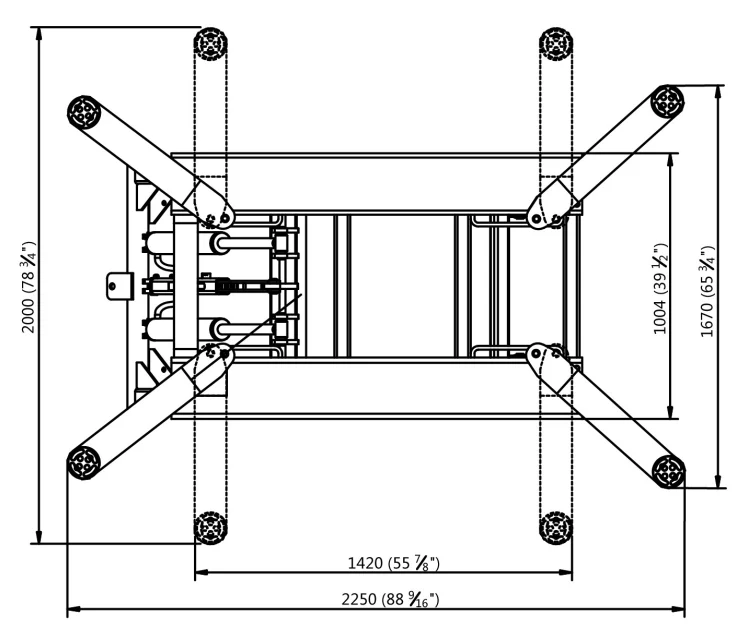

88 9/16″ Maximum Length and 78 3/4″ Maximum Width
-
One Set of 2 3/4″ Tall Truck Adapters Included
-
Dual 3 1/4″ Hydraulic Cylinder Structure
-
Unique Triple Roller Design Added Stability and Greater Contact on Floor

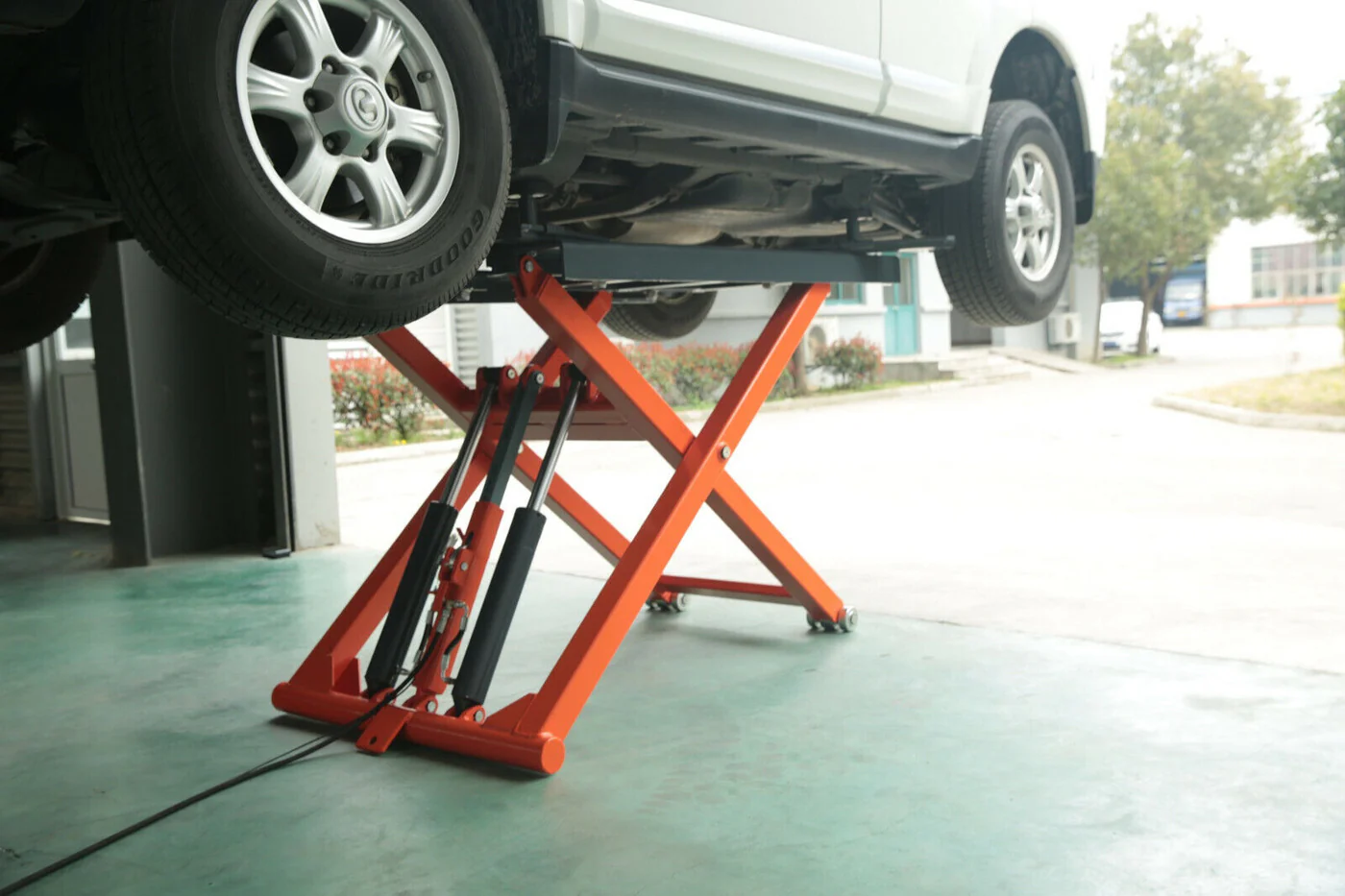

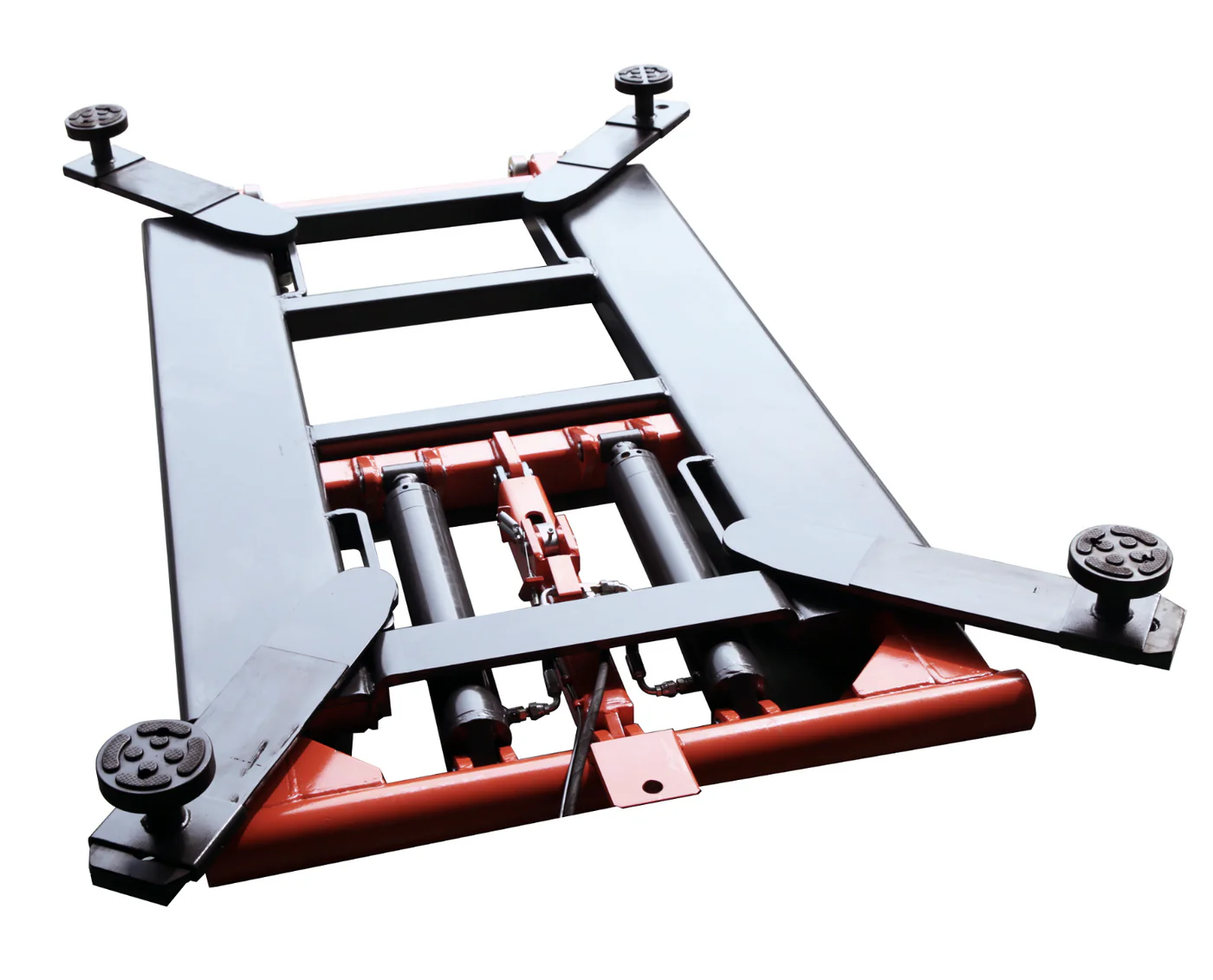

APlusLift HW-SL6600X portable mid-rise scissor lift (auto hoist) is one of the most affordable scissor lift with 6,600 LB Heavy Duty Design. HW-SL6600X is the ideal scissor lift for low ceiling or adding a bay for seasonal increases in business. It provides a good working height for tire service, detailing, brakes and body work for the shop. Quick set up time and an extended raised height. It is built with quality materials and good workmanship. EVERY PART IS FULLY TESTED. The car lift is comparable to Known High-End Brands. Suggestions to improve our products and service are always welcome!
Specifications and Features | |||||||||
| Model | HW-SL6600X (This Model) | SL-MR66 (for Comparison) | SL-MR80 (for Comparison) | ||||||
| Manual | HW-SL6600X Manual | SL-MR66 Manual | SL-MR80 Manual | ||||||
| Style | Portable Mid-Rise Scissor Lift | Mid-Rise Scissor Lift with Two Platforms | Mid-Rise Scissor Lift with Two Platforms | ||||||
| Certificate | CE Certified | CE Certified | CE Certified | ||||||
| Warranty | 3 Year (36 Months) Warranty | 3 Year (36 Months) Warranty | 3 Year (36 Months) Warranty | ||||||
| Lock Release | Manual | Electric | Electric | ||||||
| Hydraulic Cylinder | Dual 3 1/4″ Cylinders | Dual 2 7/8″ Cylinders | Dual 3 9/16″ Cylinders | ||||||
| Lifting Capacity | 6,600 LB | 6,600 LB | 8,000 LB | ||||||
| Overall Length | 55 7/8″ (Table), 88 9/16″ (with Extended Arms) | 76 6/16″ | 85 1/4″ | ||||||
| Overall Width | 39 1/2″ (Table), 65 3/4″ (with Extended Arms) | 77 1/2″ | 77 1/2″ | ||||||
| Minimum (Collapsed) Height | 6 1/8″ | 4 5/16″ | 4 3/4″ | ||||||
| Maximum Height | 47″ without Pads, 55″ with Adjustable Screw Pads | 39 3/8″ | 47 1/4″ | ||||||
| Distance Between Two Platforms | N/A | 33 7/8″ | 36 1/4″ | ||||||
| Platform Size | 55 7/8″ x 39 1/2″ | 55 15/16″ x 18 1/8″ Each Platform | 62 5/8″ x 20 1/2″ Each Platform | ||||||
| Locking Positions |
|
|
| ||||||

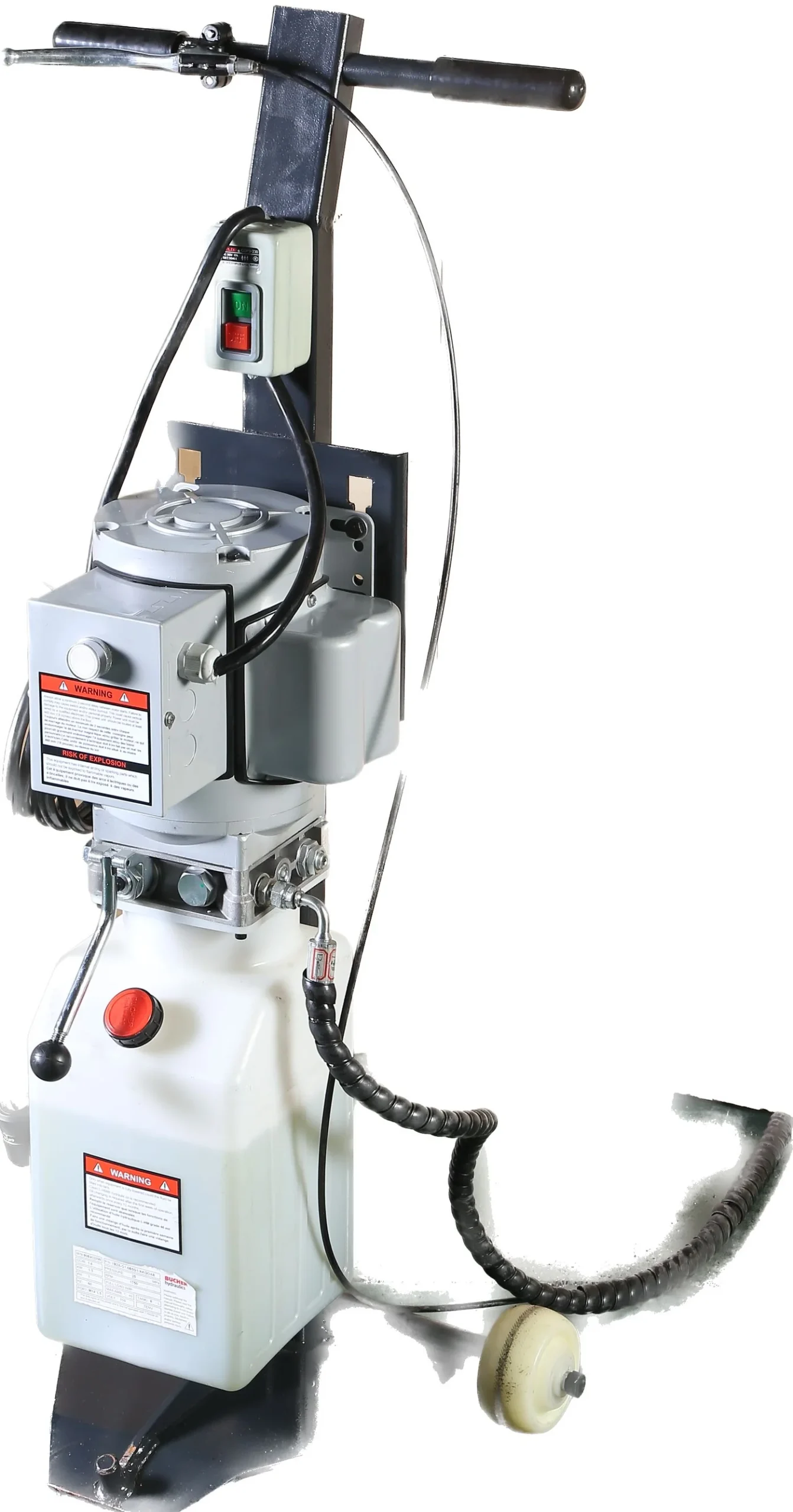

| Operation | Control Panel on Power Unit | 24V Control Box | 24V Control Box | ||||||
| Motor | 110V Single Phase 2HP (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | 220V Single Phase 3HP (recommend a 30A breaker) | ||||||
| Hydraulic Oil | 1.6 gallons AW32/AW46 (Not Included) | 1.6 gallons AW32/AW46 (Not Included) | 1.6 gallons AW32/AW46 (Not Included) | ||||||
| Time to full rise | 45 seconds | 30 seconds | 30 seconds | ||||||
| Truck Adapters | 2 3/4″ Tall Adapters Included | N/A | N/A | ||||||
| Shipping Weight |
|
|
| ||||||
| Shipping package size |
|
|
| ||||||
| Structure | Solid Steel Construction | ||||||||
| Paint Finish | Powder Coated. Color Code: Grey RAL 7016, Orange RAL 2004 | ||||||||
| Dolly | Portable Dolly Included | ||||||||
