Sale!

APlusLift HW-10KOH-A 10000 LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty

(11 customer reviews)

Original price was: $1,679.30.Current price is: $1,329.30.

79 in stock

Categories: , , , ,

blank

Description

  • Industry leading 3 YEAR WARRANTY

  • Combo (Symmetrical and Asymmetrical) Arm Assembly with Adjustable Screw Pads!

  • CE Certified Lift Structure and Hydraulic System – Tested 115% Dynamic Load Capacity and 150% Static Load Capacity

  • One Set of 4″ Tall Truck Adapters Included; 6’9″ Lift Height Maximum with Truck Adapters

  • All Robot Welded Structure with Durable Powder Coated Finish

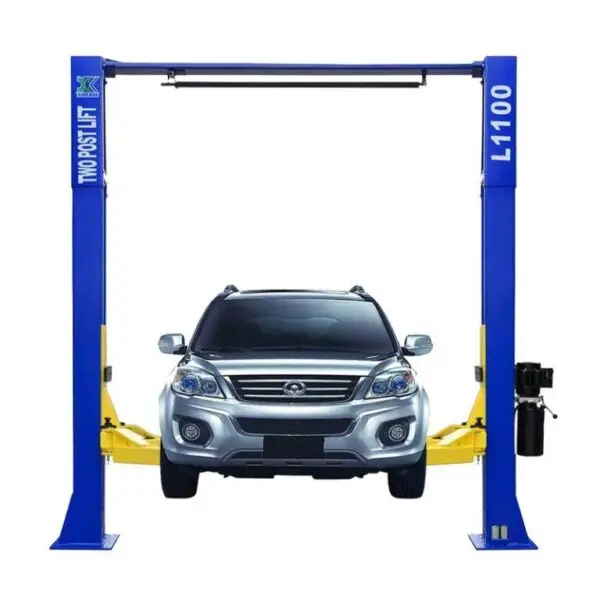

APlusLift HW-10KOH-A car lift (auto hoist) is one of the most affordable overhead car lifts built with quality materials and good workmanship. The lift has a strong double “S” column design to support 10,000 LB capacity.

Specifications

  • Installation Manual
  • Overall Height: 143 3/16″
  • Overall Width: 134 5/16″
  • Maximum Lift height with Truck Adapters: 81″
  • Maximum Lift height without Truck Adapters: 75″
  • Minimum Height of Arm Top: 4.5″
  • Drive Through Width (Carriage to Carriage): 100″
  • Column to Column Width: 109″
  • Column Cross Section: 11″L x 7″W
  • Driving Mode: Dual hydraulic cylinders, chain drive
  • Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
  • Hydraulic Oil: 3-5 gallons AW32/AW46 (Not Included in the Package)
  • Lifting Capacity: 10,000 LB
  • Time to full rise: 50 sec

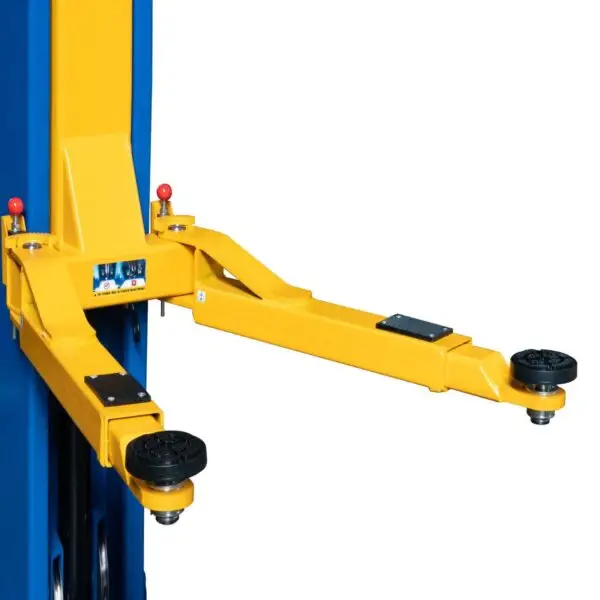

  • Combo (Symmetrical and Asymmetrical) Arm Assembly
  • Straight Front/Rear 3 Stage reach from 22 7/8″ to 42 5/8″
  • Straight Rear 2 Stage reach from 33 5/8″ to 52 7/8″

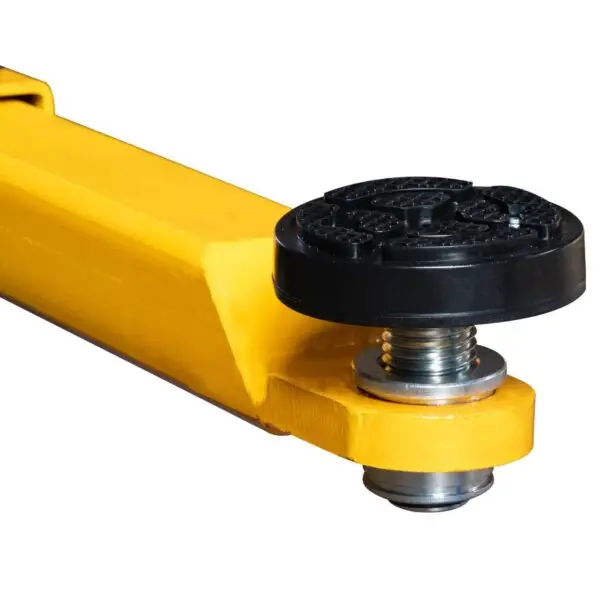

  • 4 Pieces of Adjustable Screw Pads Included
  • 4 Pieces of 4″ Tall Truck Adapters (Height Extensions) Included

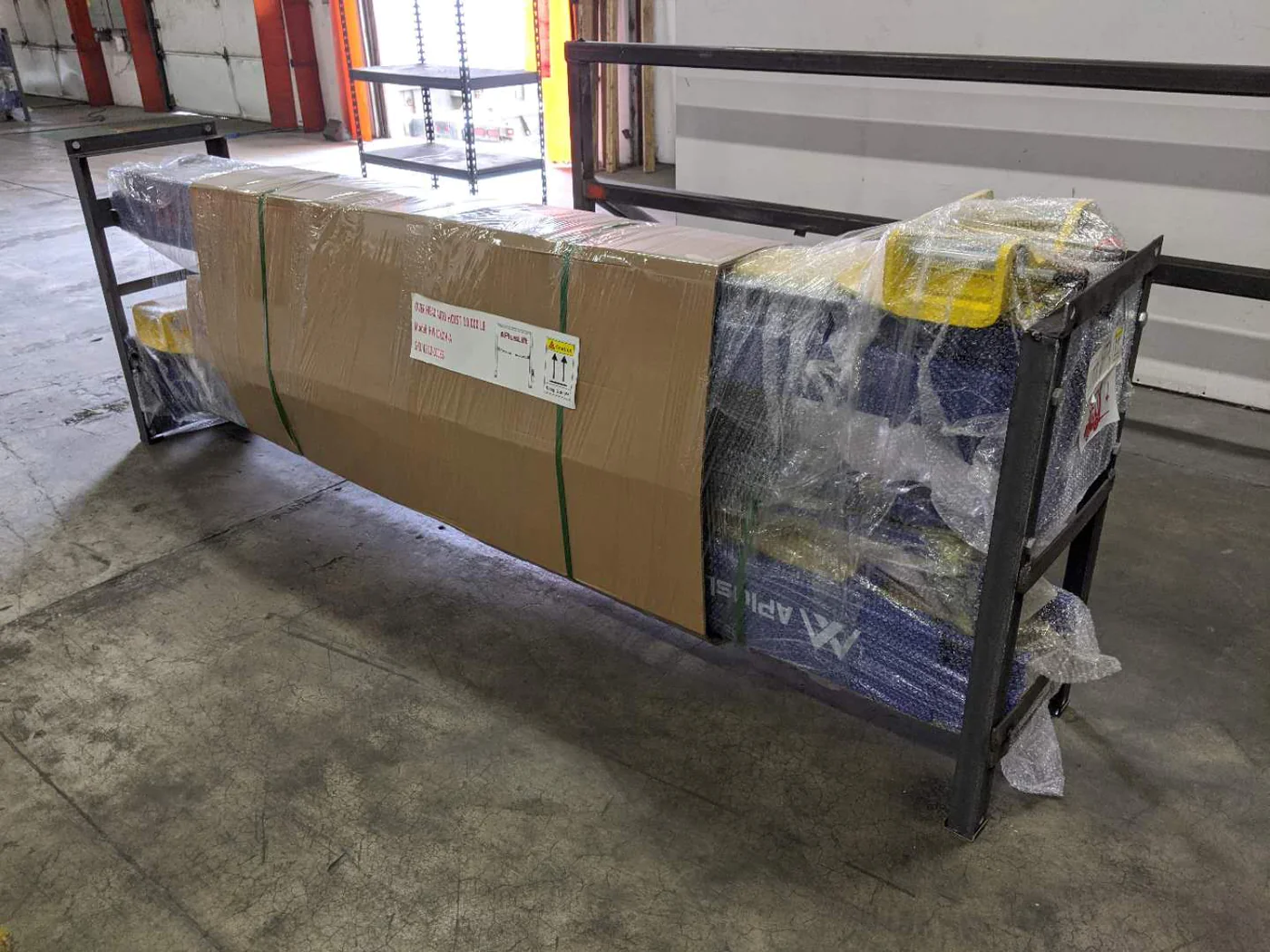

  • Shipping Weight: 1,450 LB
  • Shipping package size: 113″L x 22″W x 40″H
  • Concrete Requirement: 6″ thick at 3500 psi reinforced with fiberglass or steel (4″ thick for vehicles 9000LB and below)
  • 10 anchor bolts and 10 shims included

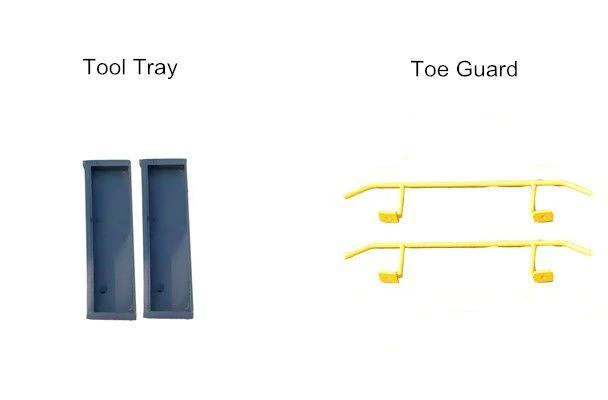

  • Tool trays and toe guards included
  • Column Steel Thickness: 13/64″
  • Carriage Steel Thickness: 15/64″
  • Carriage Yoke Thickness: 9/16″
  • Arm Steel Thickness: 15/64″
  • Base Plate Steel Thickness: 5/8″

Features

  • CE Certified Lift Structure and Hydraulic System
  • Third party tested with a dynamic load capacity of 115%
  • Third party tested with a static load capacity of 150%
  • Durable hydraulic system
  • Easy to operate and maintain
  • Double point safety lock release
  • Double Seal Rings Protecting PU Material
  • Carriage Material Q355 (ASTM A572), Stronger Than Normal Q235 Steel
  • Lifting operation by pressing “UP” button on motor
  • Manual lowering operation by pressing lever
  • Relief valve built in power pump to prevent overloading
  • Automatic arm lock restraints
  • Relief valve built in power pump to prevent overloading

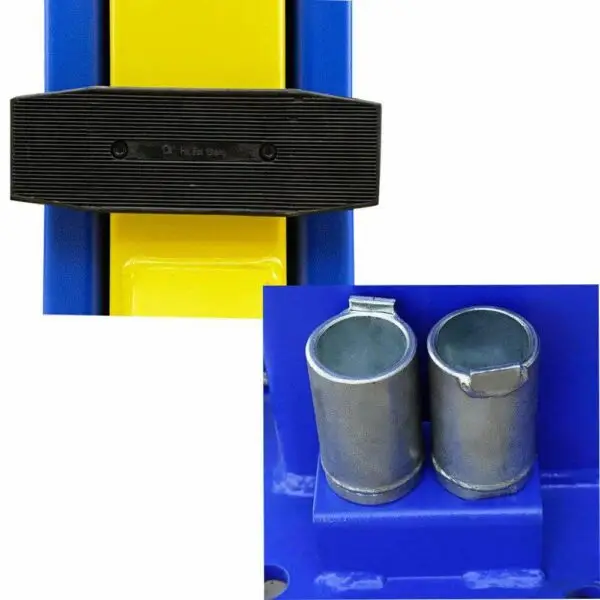

  • Door guards protection rubber
  • Up-limit switch to protect cylinders working stroke used in safe length scope

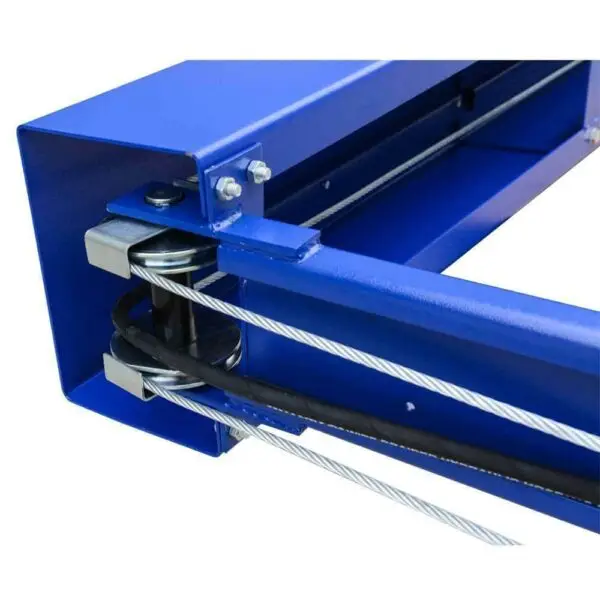

  • Heavy duty 3/8″ diameter cable and 5″ pulley that reduce high stress on synchronization process and increase cable life
  • Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
